User Guide (IFU) — Us2.v2 (Full-68+3BB)

Us2.ai - AI Software for Echocardiography

Model Version: v2

Revision: F

Medical Device



Table of Contents

1 Introduction

This document is the user guide for Us2.v2, a Software as a Medical Device designed by Us2.ai. It is recommended that you read this instruction manual carefully before use.

Us2.ai is a clinical decision support tool that analyzes echocardiogram images in order to generate a series of AI derived measurements. Fully automated, functional reporting with disease indications are also provided, in line with ASE & ESC guidelines.

Echo images are sent to the Us2.ai platform where they are processed, analyzed and measured. Results that meet the confidence threshold for both image quality and measurement accuracy are passed through to a report for review by the clinical users. Report text is also generated and presented with the measurements, providing functional reporting and disease indications.

Us2.ai greatly reduces user time spent creating manual measurements and allows clinical users to prioritize quality image acquisition and clinical time with patients.

Benefits

• No limitation on the number of users or echo scanner connections, with simple per exam pricing.
• Us2.ai processes DICOM image data and produces measurements in ~2 minutes.
• Removes/reduces the need for clinical staff to spend time measuring, increasing efficiency and throughput of patients.
• Eliminates operator variability, providing more accurate and consistent results than humans.
• Custom measurements can be made using the intuitive user interface.
• Image viewer is integrated into the web application and linked to the measurements, which makes reviewing images and measurements a single click.
• Results and measurements can be sent to EHR, PACS, CVIS as discrete measurements (HL7, CSV, DICOM SR, Encapsulated PDF) or stored as a formatted PDF report for review/signature/approval.
• All data is standardized and structured in a single DICOM SR format regardless of the source echo machine.

1.1 Abbreviations

A: area

A2C: Apical 2-chamber

A3C: Apical 3-chamber

A4C: Apical 4-chamber

A5C: Apical 2-chamber

A-L: Area-Length

Ao: Aorta

AV: Aortic Valve

CO: Cardiac Output

CW: Continuous-Wave

d: diastole

DecT: Deceleration Time

i: indexed for body surface area

ID: Internal Diameter

Echo: Echocardiogram

EDV: End-Diastolic Volume

EF: Ejection Fraction

ESV: End-Systolic Volume

IVS: Inter-Ventricular Septal

L: Length

LV: Left Ventricular

MOD: Method of Discs

MV: Mitral Valve

OT: Outflow Tract

PLAX: Parasternal Long Axis

Pmax: Maximum Pressure gradient

PW: Posterior Wall

RA: Right Atrium

RV: Right Ventricle

RWT: Relative Wall thickness

RWMA: Regional Wall Motion Abnormality

s: systole

TAPSE: Tricuspid Annular Plane Systolic Excursion

TR: Tricuspid Regurgitation

Vmax: Maximum Velocity

W: Width

1.2 Intended Use

Us2.v2 software is used to process acquired transthoracic cardiac ultrasound images, to analyze and make measurements on images in order to provide automated estimation of several cardiac structural and functional parameters, including left/ right atrial and ventricular linear dimensions, volumes, systolic function and diastolic function, measured by B mode, M mode and Doppler (PW, CW, tissue) modalities.  The data produced by this software is intended to be used to support qualified cardiologists, sonographers, or other licensed professional healthcare practitioners for clinical decision-making. Us2.v2 is indicated for use in adult patients.

1.3 Contraindications and Limitations

Because Us2.v2 measurements cover the minimum echocardiographic dataset for a standard adult echocardiogram (by European Society of Cardiovascular Imaging, British Society of Echocardiography and American Society of Echocardiography guidelines), our software is applicable to the vast majority of adult transthoracic echocardiograms.

Our current software aims to automate measurements of cardiac dimensions and left ventricular function and are applicable regardless of normal or disease states. We specifically indicate that our current product will not be reporting measurements associated with intra-cardiac lesions (e.g. tumours, thrombi), nor complex adult congenital heart disease.

Please note the following additional limitations:

• Poor image capture will lead to poor annotations and subsequent measurements. Multiple image quality algorithms are used to filter out images of poor quality.
• Our software complements good patient care and does not exempt the user from the responsibility to provide supervision, clinically review the patient, and make appropriate clinical decisions.
• If no gender is present, female referenced guideline values will be used for conclusions.
• If Body Surface Area (BSA) is not present, indexed values cannot be provided.
• Normal reference values vary with age, sex, and In case of doubt always refer back to the appropriate cardiac society's guidelines.
• During image acquisition, inappropriate use of the echo machine, use of non- cardiac ultrasound probes, use of suboptimal settings (e.g. gain, contrast, depth), or lack of EKG capture may lead to lower accuracy of the software.

1.4 Clinical Benefits

Us2.ai is an image post-processing analysis software device used for viewing and quantifying cardiovascular ultrasound images in DICOM format. The device is intended to aid diagnostic review and analysis of echocardiographic data, patient record management and reporting.

The primary intended function of Us2.v2 is to automatically provide clinically relevant and reproducible quantitative echocardiographic measurements, while reducing echocardiographic analysis time. In doing so, the primary benefit of Us2.v2 is to improve clinical echocardiographic workflow, enabling clinicians to generate and edit reports faster, with precision and with full control.

Today, the clinical workflow of a sonographer is as follows:

1. The sonographer performs the echocardiography exam (“echo exam”) to capture the images/videos.
2. The specialist sends the images/videos to a server for picture archiving and communication system (PACS).
3. Another specialist retrieves the images/videos from the PACS and downloads them onto a local workstation to then:
   1. Review the images/videos. Manually determine which view has been captured.
   2. Manually determine the cardiac structures imaged within the captured view.
   3. Manually segment and draw annotations on the region of interest (ROI) in order to perform measurements.
   4. Manually refer to standard reference guidelines to determine if any of the potentially dozens of measurements performed fall within the normal range of values for that patient’s sex or ethnicity.
   5. Manually create a report based upon the conclusions drawn from the measurements.

This process can be prone to human error, and is more importantly time-consuming, placing a rate on the number of exams that can be processed within a given unit of time.

The goal of Us2.v2 is to simplify much of this process through machine learning based automation, so that the workflow becomes:

1. The sonographer performs the echo
2. The sonographer sends the images/videos to a PACS
3. Us2.v2 retrieves the images/videos from the PACS and processes them, allowing a sonographer to then:
   1. Review the report which has already highlighted measurements that fall outside of normal ranges.
   2. Review the original images/videos, if desired.
   3. Manually adjust any of the automated segmentations and measurements if desired.

1.4.1 Enhanced Echocardiographic Reporting: Balancing Automated Analysis with Manual Review

While the software does not require human intervention to automatically produce a full report, the software provides an interface for a skilled sonographer/ reviewing physician to perform edits/ revise the markup on the echocardiographic image measurement if needed. The markup includes: the cardiac segments captured, measurements of distance, time, area and blood flow, quantitative analysis of cardiac function, and a summary report.

The software allows the sonographer to enter their markup manually. It also provides automated markup and analysis, which the sonographer may choose to accept outright, to accept partially and modify, or to reject and ignore. Machine learning based view classification and border detection form the basis for this automated analysis. Additionally, the software has features for organizing, displaying and comparing to reference guidelines the quantitative data from cardiovascular images acquired from ultrasound scanners.

3 Installation

Us2.ai is available as a cloud service, installed on premises (hard server or suitable VM), or on a high end tablet, laptop or workstation, for direct connected offline use. Workflows are fully configurable, the software can be interfaced and integrated with any combination of echo scanners and PACS/EMR/reporting packages.

Us2.ai comes in two configurations:

3.2 On-Premises workflows

The Us2.ai on-premises software application is used to process DICOM images from multiple echo scanners within the local hospital network, automatically generating measurements and report text, which can then be forwarded to the PACS, reporting system or EMR. Patient data never leaves the site, nor is accessible outside of the network (unless specifically requested and data sharing is enabled by an administrator).

Us2.ai software can also be used entirely on the local network, installed in customer provided servers (VM or hardware), on a NUC server provided by Us2.ai, or on a standalone tablet, laptop, or workstation.

Multiple echo scanners and multiple clients (clinical users accessing via browser) can connect concurrently to a single instance.

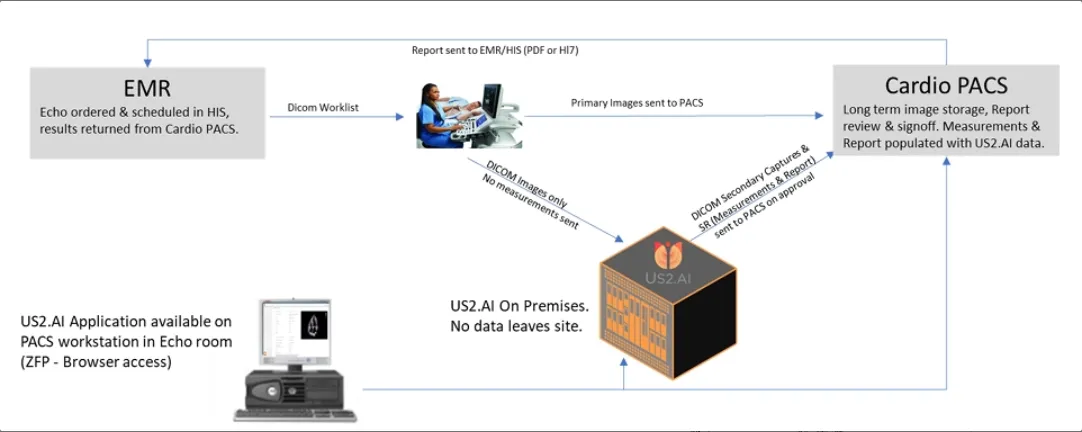

3.2.1 Common on-premises workflows

3.2.1.1 Direct send from echo scanners (preferred)

• Exams performed as usual, but no need for manual measurements.
• Images are “sent on acquire” to both the PACS and the Us2.ai server as they are stored during the exam.
• Us2.ai measures and analyzes in real time, finalizing a complete report while the patient is still present.
• Browser based access to the Us2.ai app allows users to review and approve measurements. The full patient report and measured images are available on the workstation in the echo room, on a tablet next to the echo machine, or on any suitable device on the network (PC in cardiologist office, remote view from mobile devices, etc.).

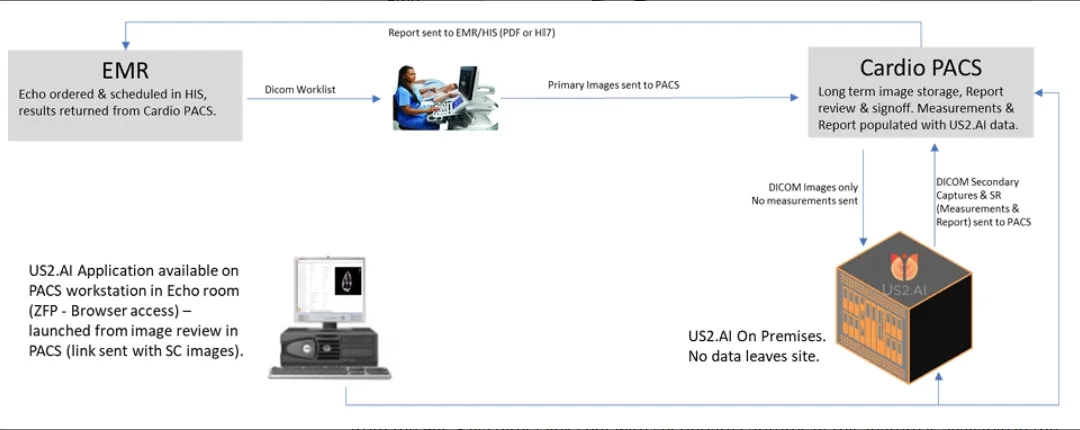

3.2.1.2 Images managed by PACS

• Exams performed as usual, but no need for manual measurements.
• Images are sent to the PACS as usual and appropriate studies are forwarded to the Us2.ai server.
• Us2.ai measures and analyzes the images, returning results to the PACS in ~2 minutes.
• Browser based access to the Us2.ai app is available to review results and can be launched from the PACS via direct link sent with secondary captures (if this feature is available in the PACS).

3.2.1.3 Server requirements for on-premises

(NUC supplied by Us2.ai, VM or hard server provided by local IT)

Platform

• Ubuntu 18+ (preferred)
• Debian 10+
• CentOS 7+
• Amazon Linux 2
• Windows 11 Pro

Processor

• 16 cores or more

RAM

• 64 GB or more

Storage (suggested)

• OS Drive: 1TB SSD (NVME preferred)
• Data Drive: 1Tb per 1k echo exams to be stored

GPU (physical GPU required on VM)

• Min 12GB GPU (i.e. RTX 4070 or higher) dedicated GPU required for VM.

Static IP address

Ports

• inbound 11113
• outbound 443
• plus any ports used to send to onsite PACS/EMR (defined by the PACS manager)

Security & Backups

• For demonstration and loan systems CrowdStrike is installed. Local IT can install alternatives in line with local policies. Backups can be managed in line with local policies.

3.2.1.4 Installation for on-premises

For Us2.ai provided hardware, the system will arrive preinstalled. Us2.ai engineers will require remote access to finalize the installation.

For a local IT supplied hard server or virtual machine, installation will proceed as follows:

• Local IT will install the operating system and suitable GPU drivers, and set a static IP address.
• Us2.ai will provide a download link for a site specific software bundle.
• Local IT will provide an agreed method for Us2.ai to have secure remote access.
• Us2.ai engineers will remotely install the Us2.ai application within Docker, isolating the Us2.ai application from the OS. The install will contain all required libraries, system tools, and runtime code. This process minimizes IT input and resources required for the deployment.
• Local IT will provide details for any SSO/SAML/LDAP/Active Directory integration.
• Local IT will agree a URL for client access. The local DNS can be used for addressing. If no local DNS is available, Us2.ai can provide & manage a secure ####.Us2.ai domain.
• Outbound export to a local PACS/EMR can be defined on installation, or added at a later date via an administrator login to the web interface.
• Once deployed, the installation will be verified & tested by Us2.ai engineers, with assistance from local IT.
• The Us2.ai application software runs a DICOM router as a DICOM SCP which can be set up as a DICOM server destination on echo machines:
  • The following details will be entered as the destination on the echo machines:
    • IP address of Server hosting the Us2.ai application
    • AE Title: Us2.ai
    • Port: 11113
  • Set the echo machines to export 30 frames per second or greater (full frame rate is preferred for stress analysis)
  • JPEG compression can be used
  • DICOM SR can be sent to Us2.ai if user generated measurements are also to be viewed within the Us2.ai application



The DICOM router uses MP4 compression to greatly reduce file sizes prior to processing. This may not be compatible with some PACS systems. If source DICOM images are required to be exported from Us2.ai in the future, please request that this is disabled on installation (i.e., if Us2.ai on premises is your primary image storage). In most cases, source DICOM images have already been sent to a PACS and will not need to be exported from Us2.ai.

Installation instructions: installation may be only realized by technicians of Us2.ai.

4 Getting Started

4.1 Login

Using your user login credentials that you will have received separately, use your browser and navigate to https://app.us.Us2.ai/ to login.

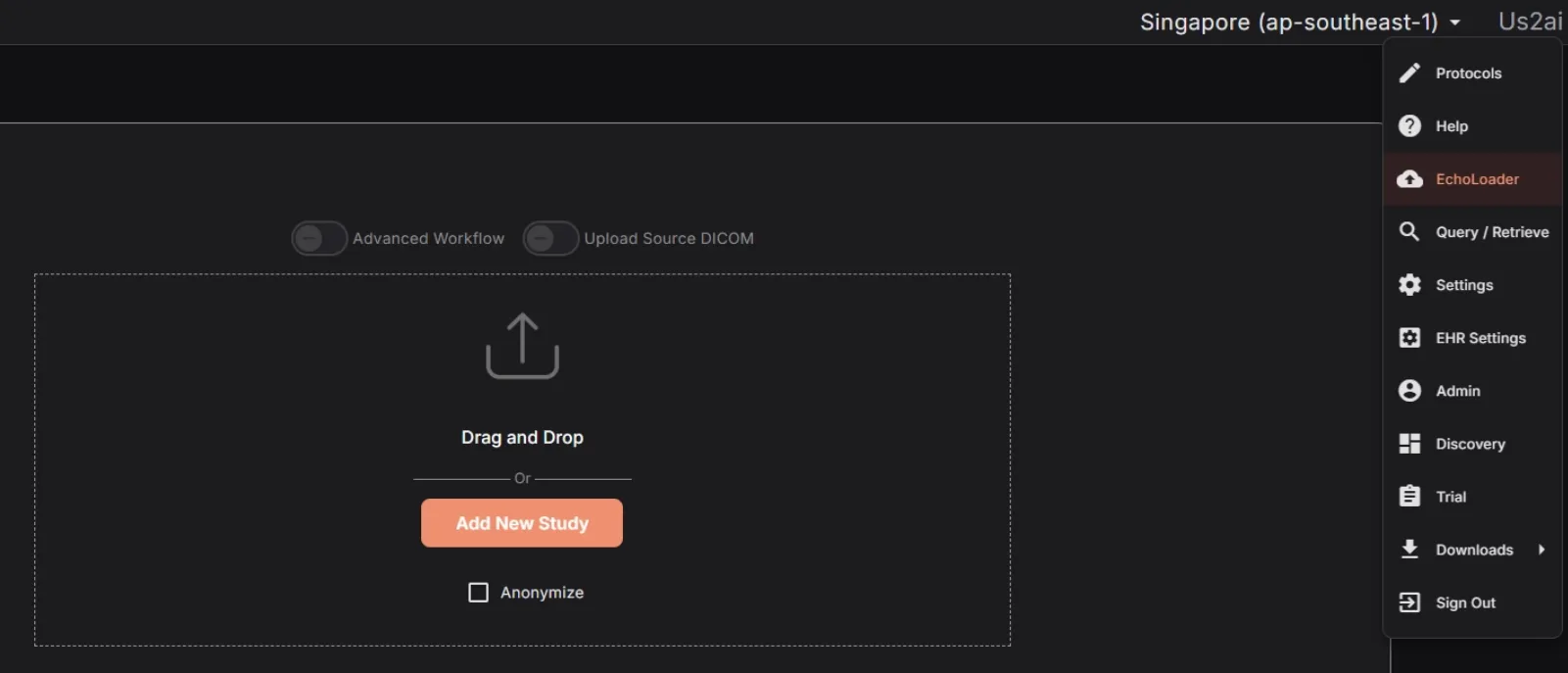

4.2 Echoloader

• Select the "EchoLoader" option. Note only DICOM format studies are supported.



• Click on Browse Files to locate the echo studies you would like to analyze, or simply drag and drop them into the browser window.
• Click the Anonymize checkbox to remove patient identifiers from the processed files.
• Once your files have been added, you will be given the chance to approve them before they are processed (in the cloud or on premises). The original DICOM files are stripped of the majority of their information, images cropped to remove any potential identifiers, and DICOM metatags removed, except for those required by the software.
• The following DICOM metatags are always used:
  • AccessionNumber
  • AcquisitionDate
  • AcquisitionDateTime
  • AcquisitionTime
  • ClinicalTrialProtocolID
  • ClinicalTrialProtocolName
  • ClinicalTrialSubjectID
  • ContentDate
  • ContentTime
  • InstanceNumber
  • InstitutionName
  • Manufacturer
  • ManufacturerModelName
  • Modality
  • PatientAge
  • PatientSex
  • PatientSize
  • PatientWeight
  • ReadingPhysician
  • ReferringPhysician
  • SeriesDate
  • SeriesInstanceUID
  • SeriesNumber
  • SOPClassUID
  • SOPInstanceUID
  • StudyDate
  • StudyDescription
  • StudyID
  • StudyInstanceUID
  • StudyTime
  • ViewNumber
  • ViewName
  • TransferSyntaxUID
  • StageNumber
  • StageName
  • SequenceOfUltrasoundRegions
  • SegmentedRedPaletteColorLookupTableData
  • SegmentedGreenPaletteColorLookupTableData
  • SegmentedBluePaletteColorLookupTableData
  • SamplesPerPixel
  • Rows
  • RedPaletteColorLookupTableDescriptor
  • RedPaletteColorLookupTableData
  • RecommendedDisplayFrameRate
  • PlanarConfiguration
  • PixelRepresentation
  • PhotometricInterpretation
  • NumberOfStages
  • NumberOfFrames
  • HighBit
  • HeartRate
  • GreenPaletteColorLookupTableDescriptor
  • GreenPaletteColorLookupTableData
  • FrameTime
  • EffectiveDuration
  • Columns
  • CineRate
  • BluePaletteColorLookupTableDescriptor
  • BluePaletteColorLookupTableData
  • BitsStored
  • BitsAllocated
• The following DICOM metatags are used when anonymization is turned off:
  • PatientBirthDate
  • PatientID
  • PatientName

Prior to uploading, you will be able to remove, pseudonymize for each of the respective metatags by clicking on the ‘Edit’ button beside the Anonymize checkbox.

After you have approved the images, the upload will start following a predefined workflow based on the mode of installation.

1. Cloud: A pre-signed URL will be created and used to upload to the AWS s3 bucket
2. On-Prem: Upload will be performed directly to an upload URL

Upon completion of the upload, the automated analysis will be triggered based on the uploaded DICOM images and reflected on the search page as the processing finalizes.

Echos must be in the standard DICOM format and can be loaded from your local computer or a network For connections to a PACs server or custom EHR integrations, please contact Us2.ai (see Manufacturer section at the end of this document)

More Advanced Search Tools are also available to locate studies by specified search criteria. You can search for studies using:

• Conclusions
  • LV Systolic Function
  • LV Diastolic Function

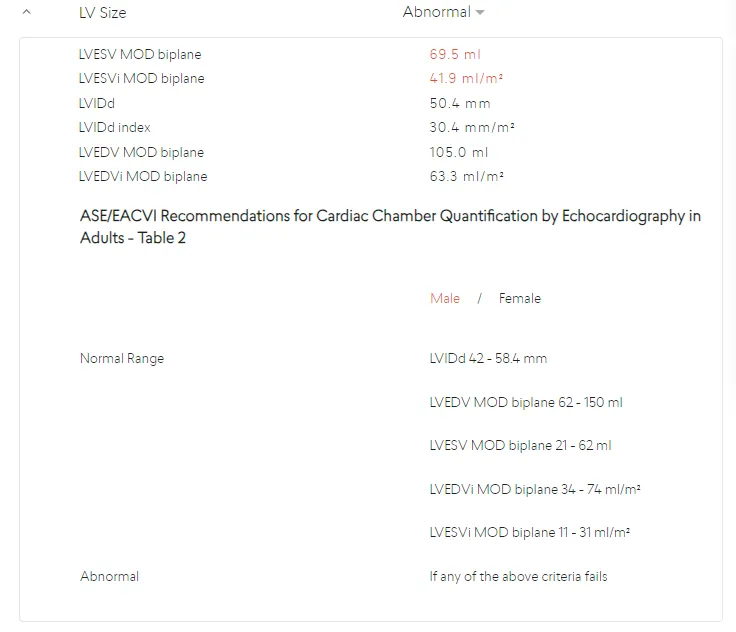

  • LV Size
  • LV Geometry
  • RV Function
  • RV Size
  • LA Size
  • RA Size
  • Aortic Stenosis

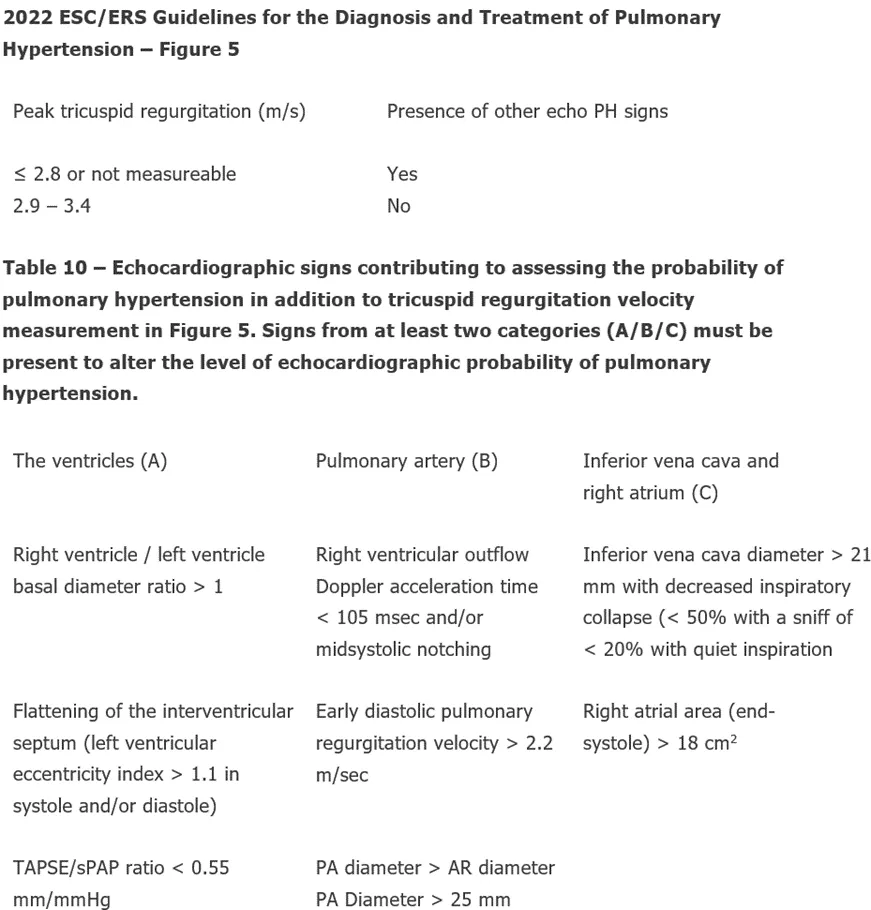

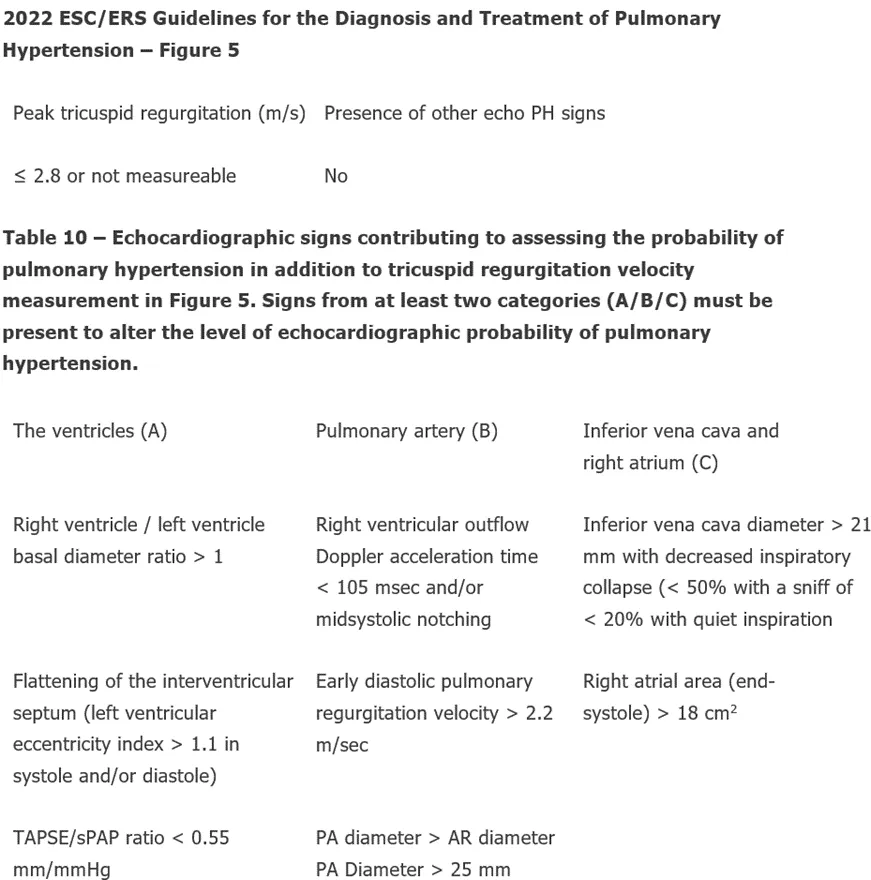

  • Pulmonary Hypertension
  • Heart Failure

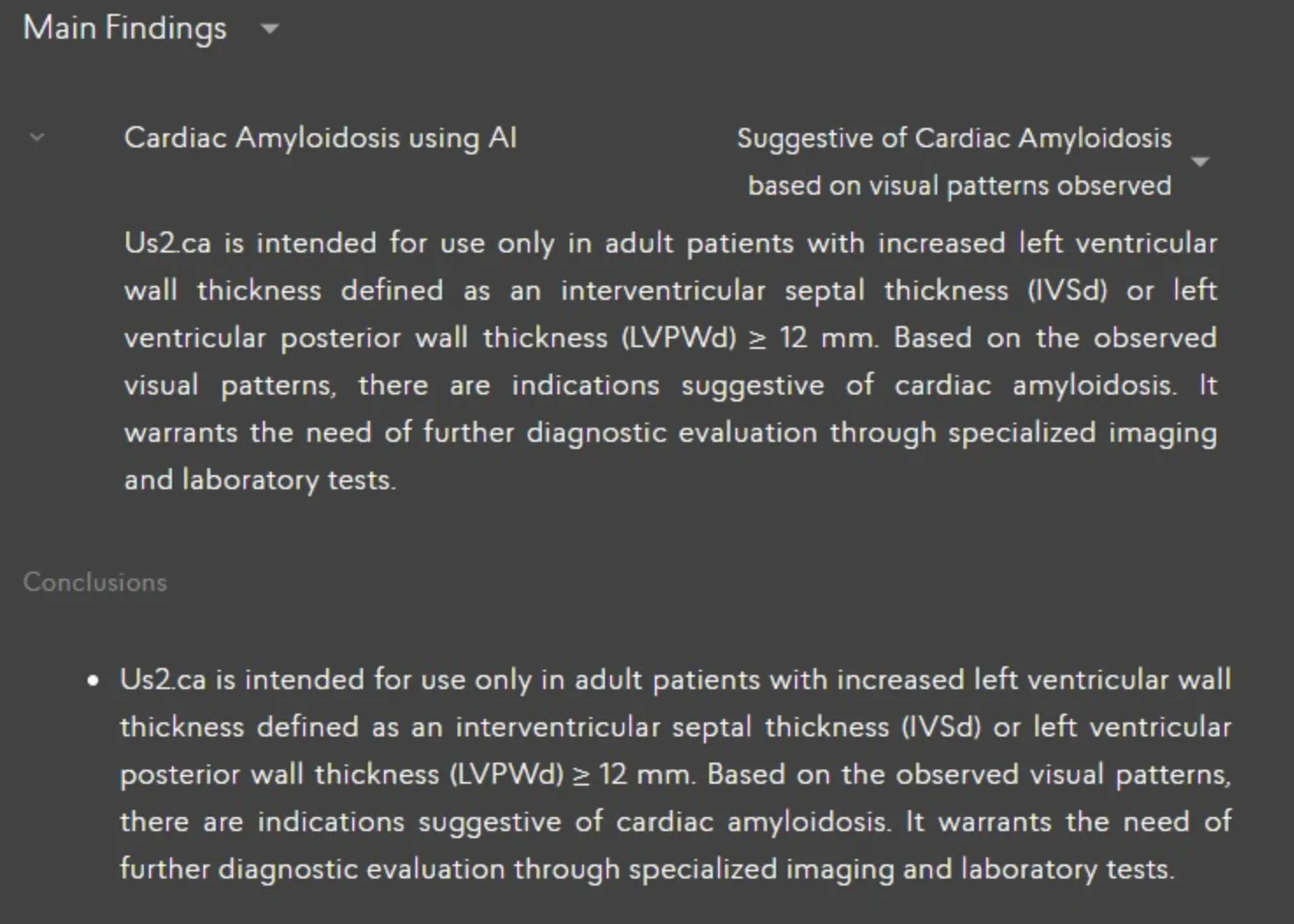

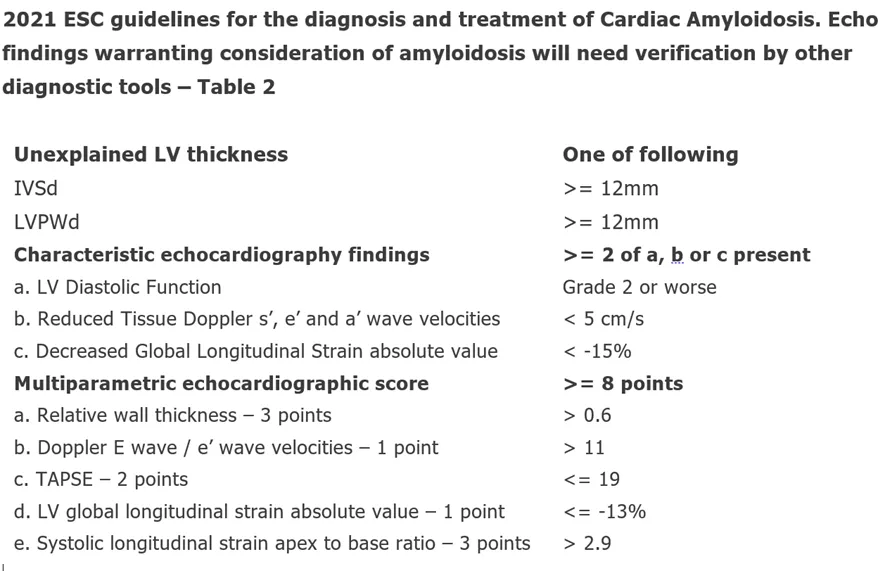

  • Cardiac Amyloidosis

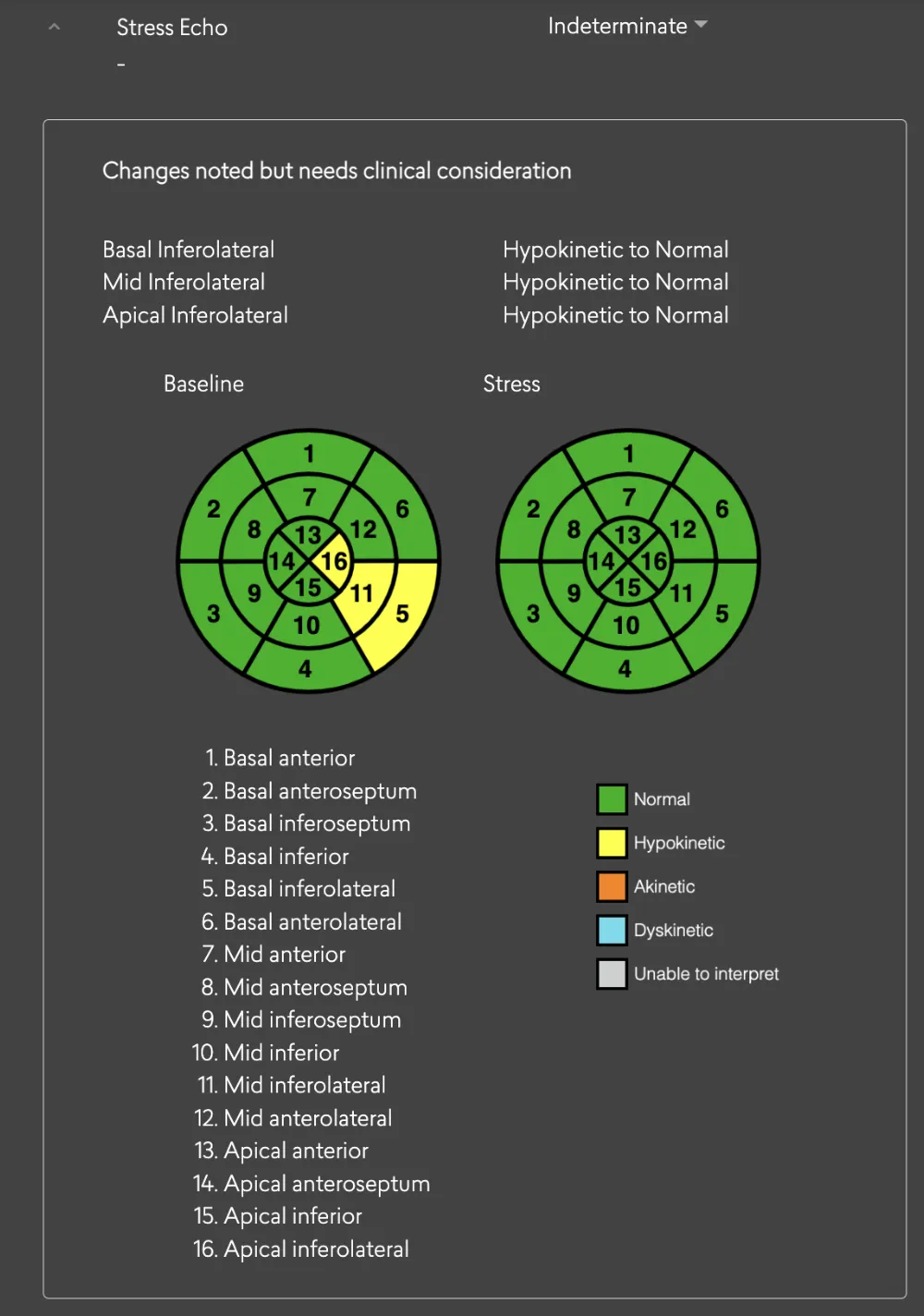

  • Stress Echo
  • Cardiac Amyloidosis - AI
  • Mitral Regurgitation - AI
  • Hypertrophic Cardiomyopathy - AI
• Referral reason
• Trial (if applicable)
• Measurements

Radio buttons, toggles, text entry fields, dropdown selectors and date pickers are implemented using their respective Angular Material components. The Advanced Search options are contained within an Angular Material expansion panel.

The search page also offers a paginated search result overview, that allows the user to navigate to any report that matches their search criteria.

4.3.1 Sync

On page load, the Search Component uses the Sync Service to search parameters such as databases available, and referral reasons.

4.3.2 Refresh

The search results are periodically updated to keep the search results in sync with changes from other users or automated analysis.

4.3.3 Navigate

Clicking a row in the Search Result component will navigate to the report clicked. On click, the URL is changed to the report page, with the parameters associated with the row included. The URL is also encoded with information from the original search. This allows navigation between reports on the report page, based on the search parameters.

Studies can also be viewed using mobile device browsers or via the Us2.ai app available on Android. Please contact your account representative for access.

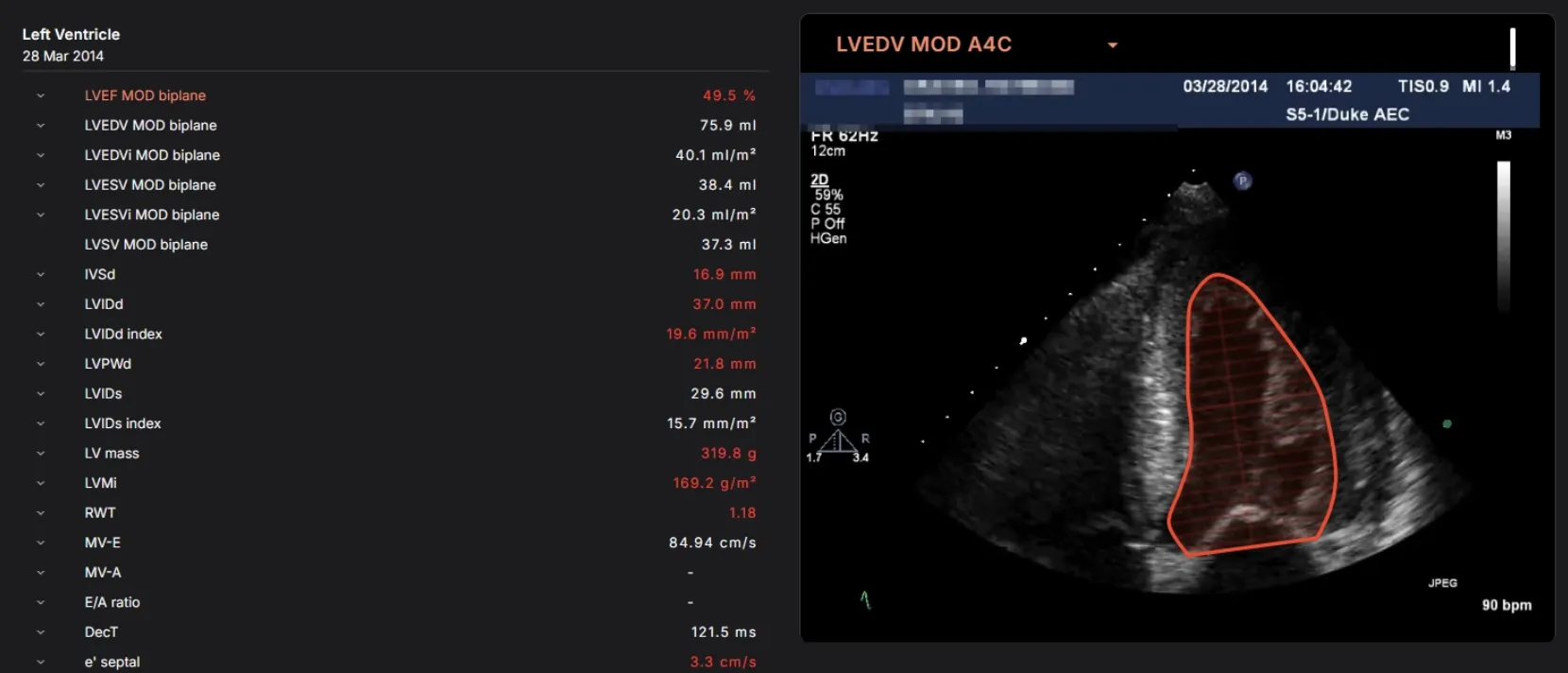

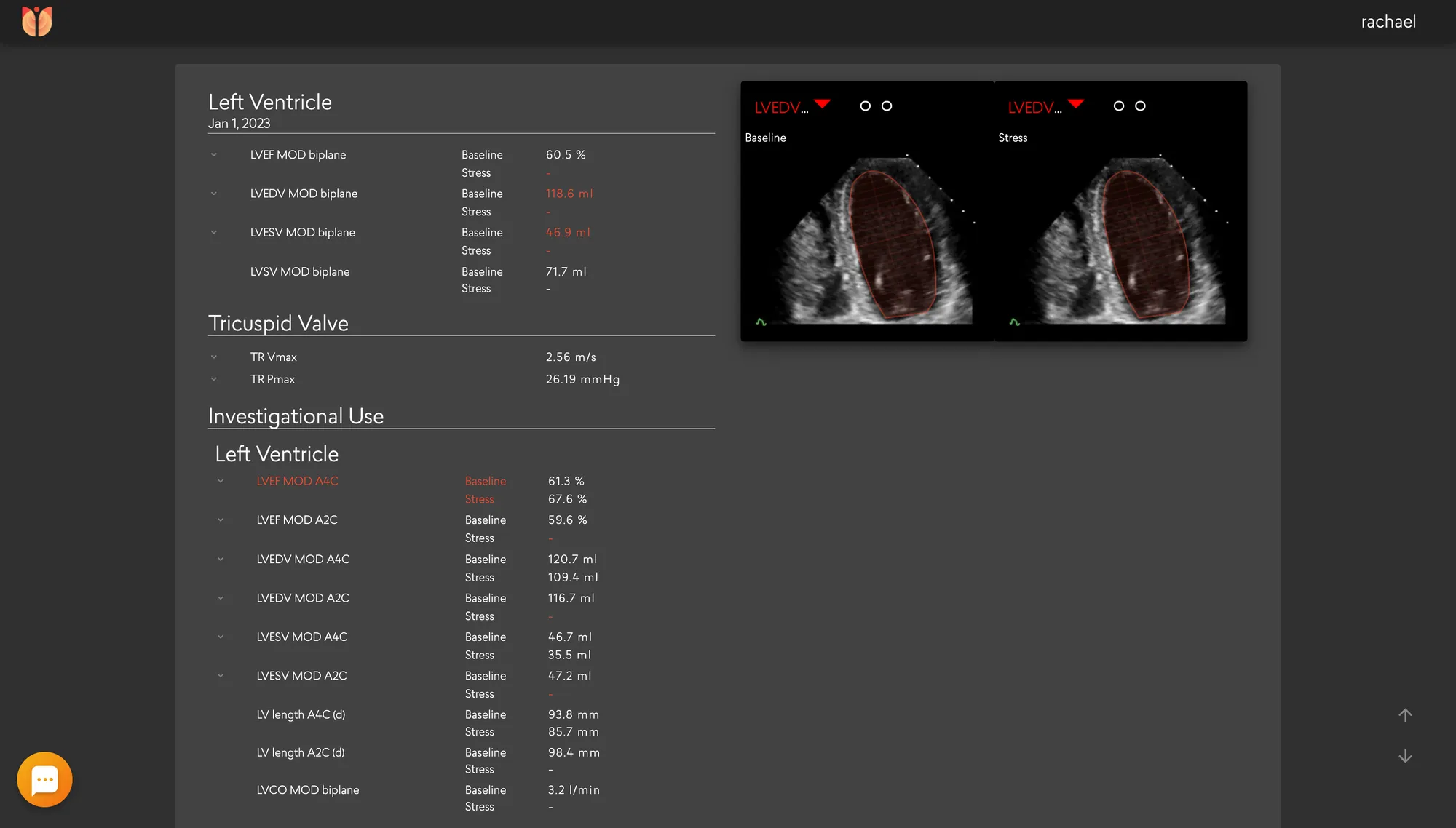

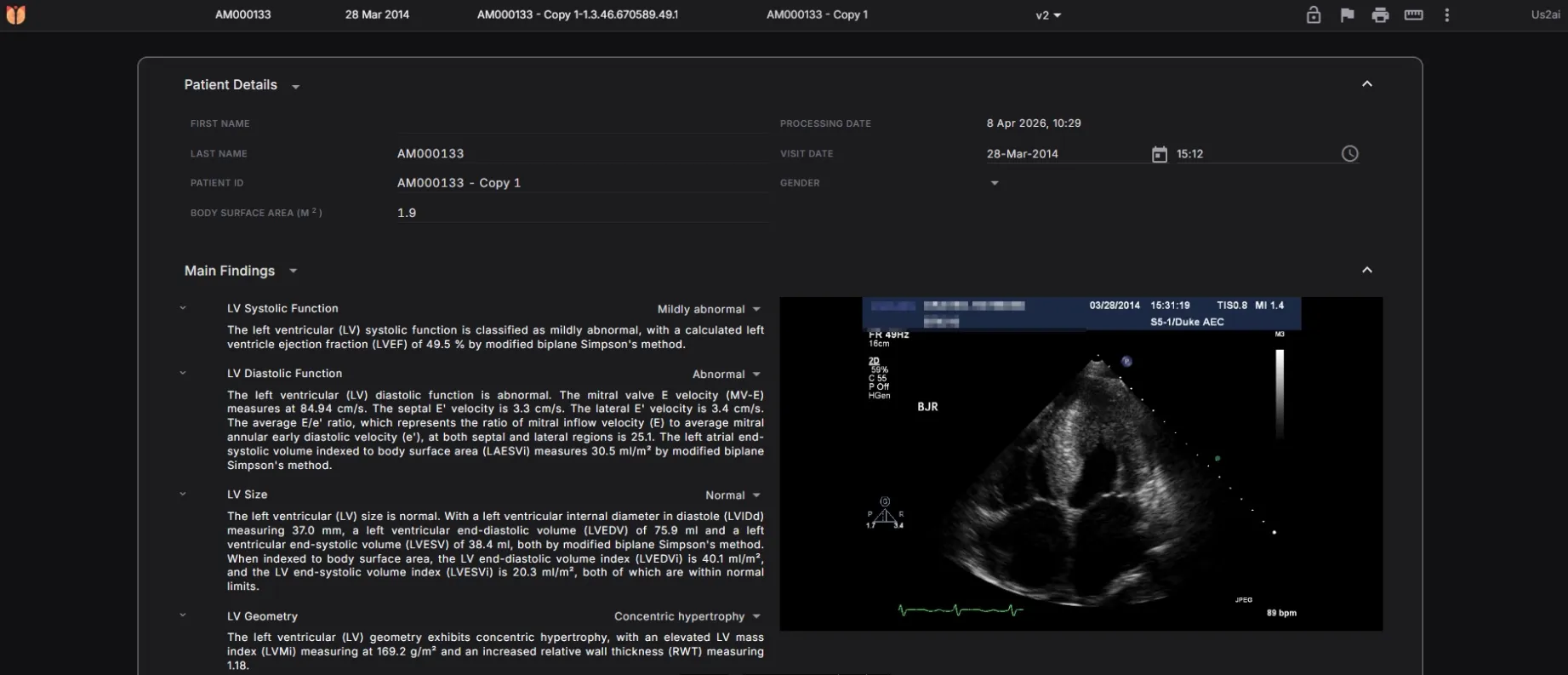

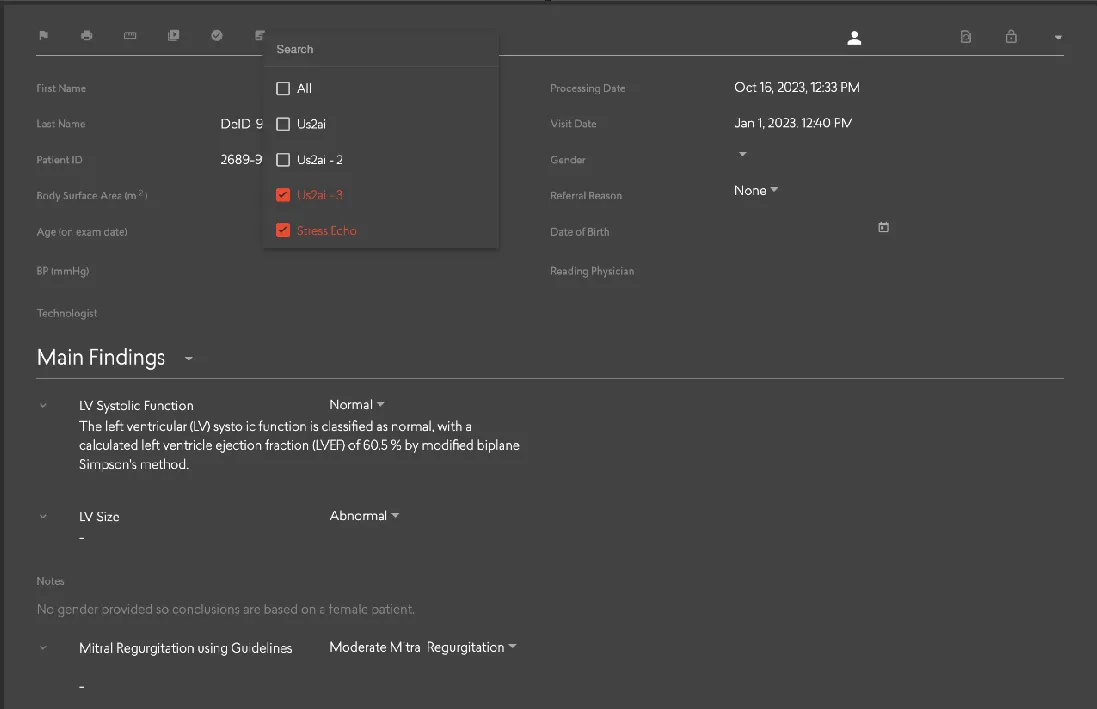

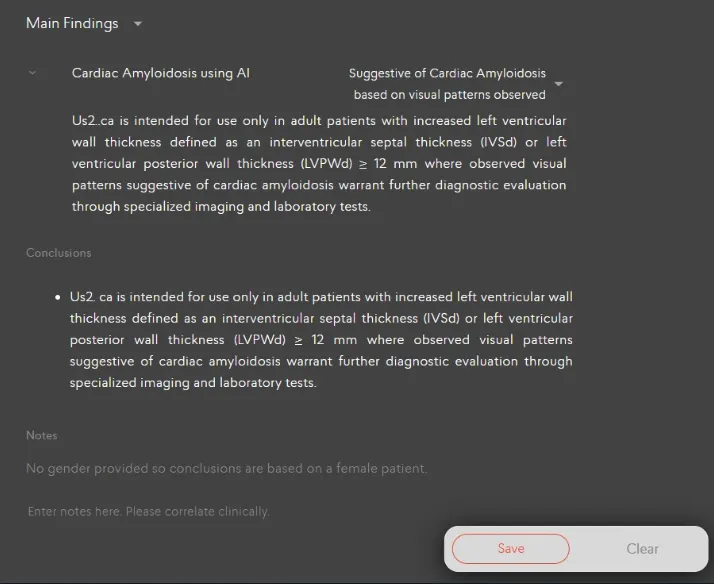

4.4 Viewing patient reports

The Report page displays patient reports in 2 panels,

1. Detailed list of patient information, notes and automated findings based on International Cardiology guidelines. A video containing a moving chamber segmentation will be included if available.

By selecting the patient ID from the dropdown list triggered by clicking on the Select Patient icon, the report reloads with information from the selected patient. The arrow buttons may also be used to navigate to next and previous patients.

1. List of all measurements provided in the patient report, grouped by their respective headings with abnormal measurements displayed in red.

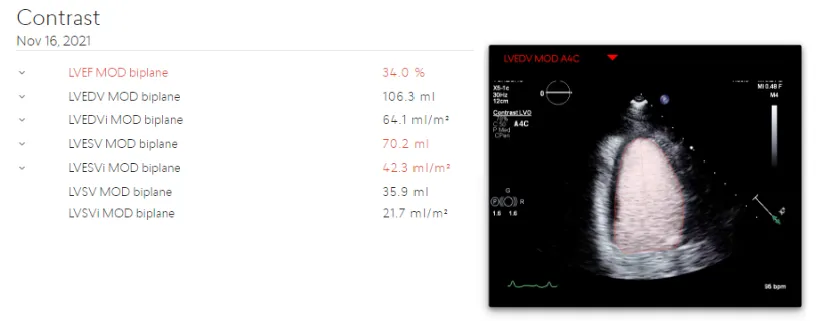

1. Hovering over the measurements displayed in the report, the dependencies for that measurement are parsed and then passed into the preview component which displays the measurement on the custom editor canvas. If dependencies passed in consists of an array of derived measurements, the dropdown in the preview box will list all of the dependent measurements. If there is more than one value for a particular measurement, the top shopper for all measurements will be displayed, and an option to preview the rest will present itself as radio buttons. Each measurement displayed in the report is linked to the measurement URL to access the measurements page where edits may be applied.

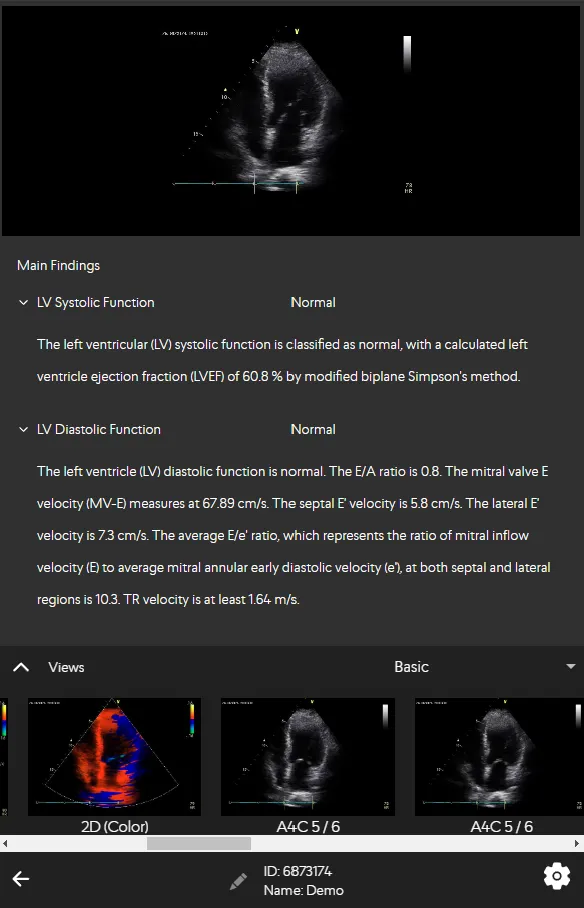

Or, if using a mobile device, you can tap swipe to navigate through the Report sections.

4.4.1 Primary Measurements

The following measurements are available:

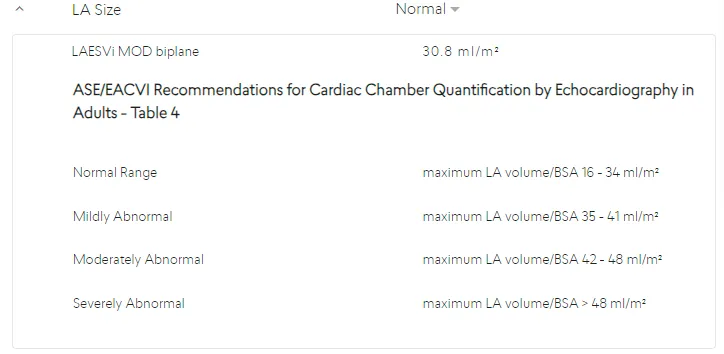

When approved International Reference Guidelines are available for a measurement, they can be viewed, along with the exact reference where the Guideline determination can be found, in an expanded panel by clicking on the arrow next to the measurement name.

If measurement values are available in the Report, then the parameters in approved International Reference Guidelines will be used to generate Main Findings or Clinical Notes for the study. If any measurement values required by the International Reference Guidelines are missing, then the related Main Finding will not be displayed.

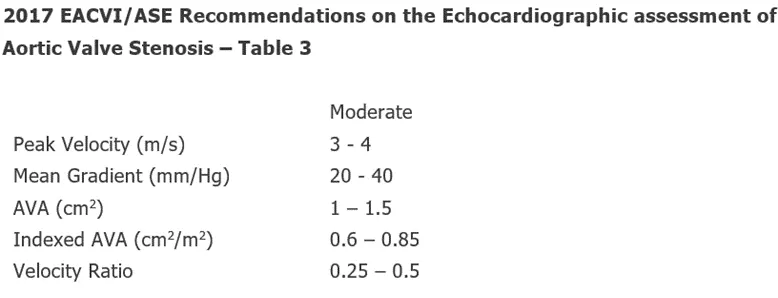

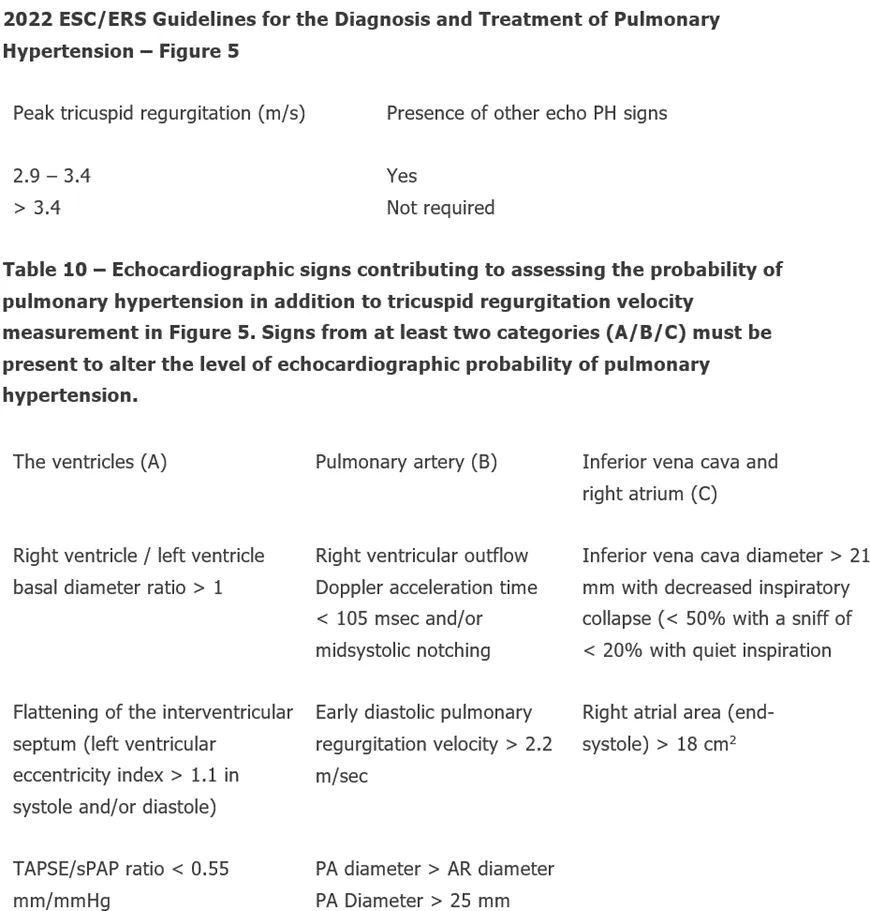

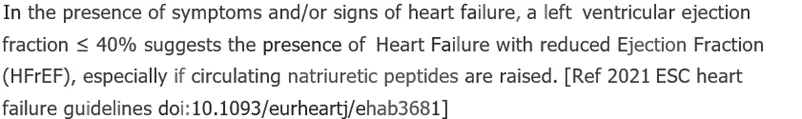

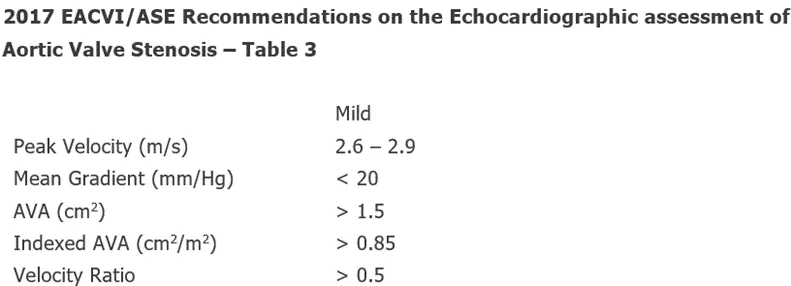

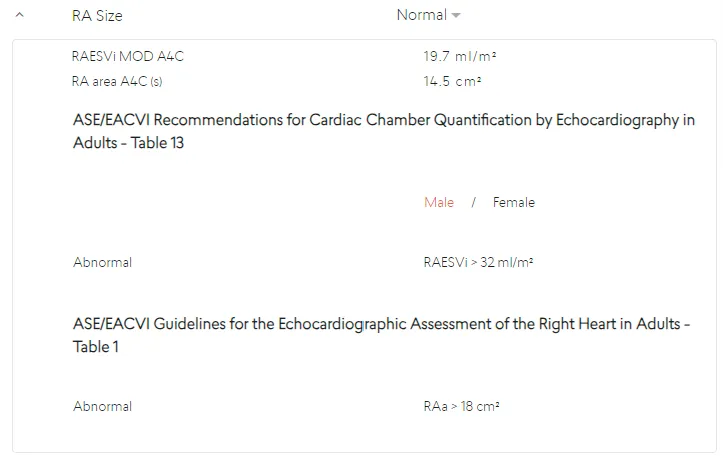

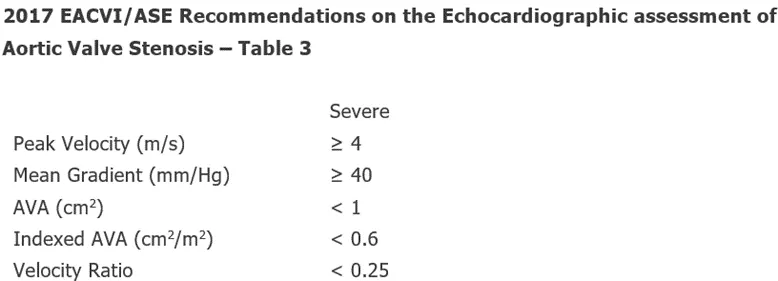

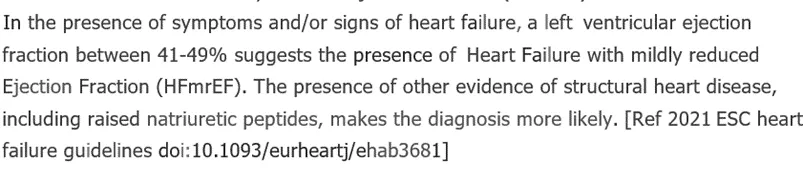

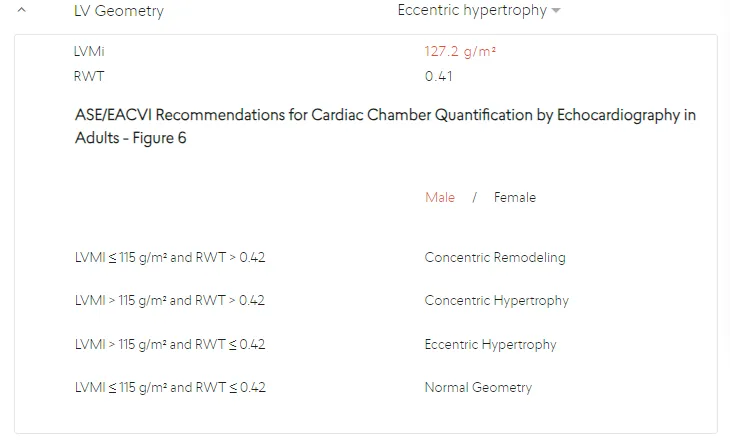

4.4.2 International Reference Guidelines

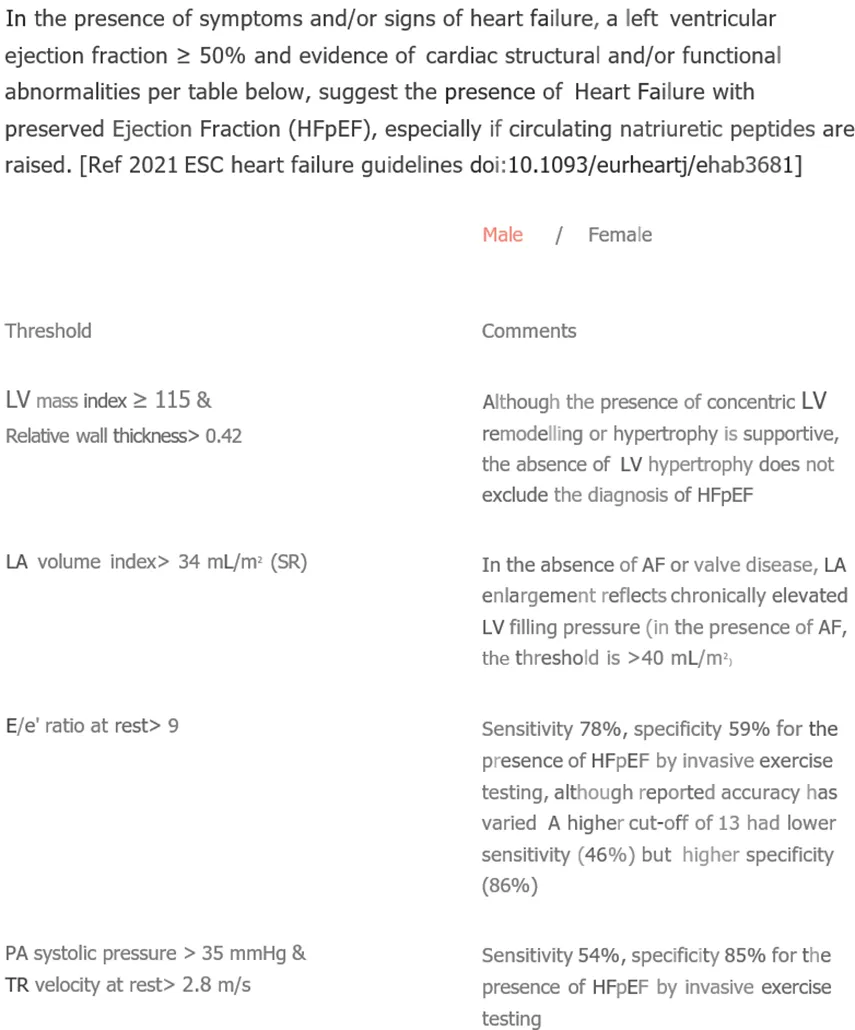

The list of possible Main Findings that can be displayed using International Reference Guidelines are:

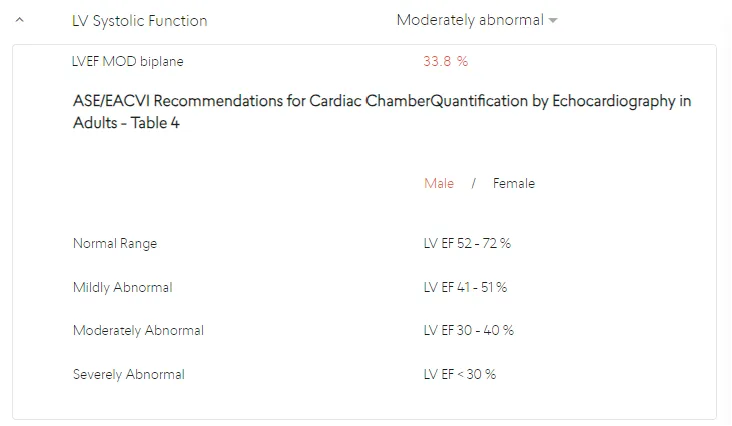

LV Systolic Function

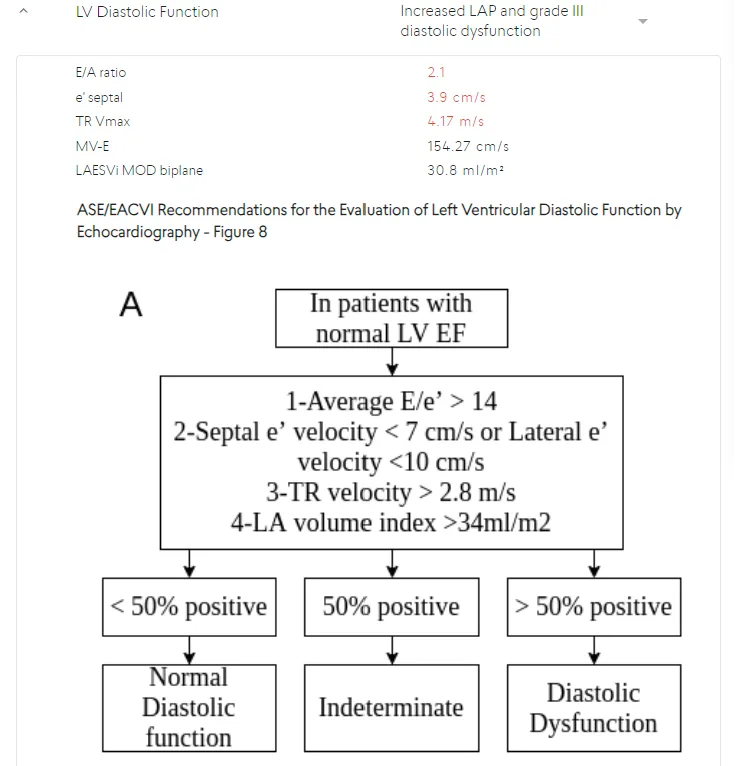

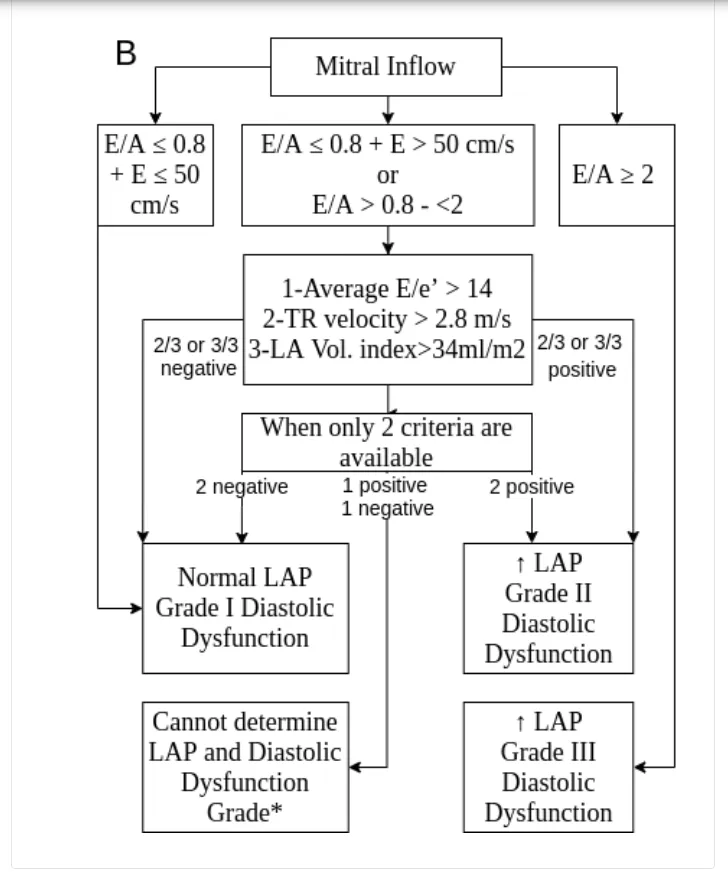

LV Diastolic Function

LV Size

LV Geometry

RV Function

RV Size

LA Size

RA Size

Heart Failure with Preserved Ejection Fraction (HFpEF)

Heart Failure with mildly reduced Ejection Fraction (HFmrEF)

Heart Failure with reduced Ejection Fraction (HFrEF)

Mild Aortic Stenosis

Moderate Aortic Stenosis

Severe Aortic Stenosis

Low Echocardiographic Probability of Pulmonary Hypertension

Intermediate Echocardiographic Probability of Pulmonary Hypertension

High Echocardiographic Probability of Pulmonary Hypertension

Cardiac Amyloidosis

Hovering over a measurement name displays a preview of the annotation made and underlying measurement. Measurement values that fall outside of available International Reference Guidelines are highlighted in red. You may edit the measurements/suggested conclusions, illustrated in Section 4.3.

If a measurement value is calculated from more than one annotation, they can all quickly be reviewed by clicking the pull down arrow in the preview image.

4.7 Supplemental Modules

For users with access to supplemental modules that uses AI to identify patients who need additional follow up for the various disease(s) but do not replace current standards of care.

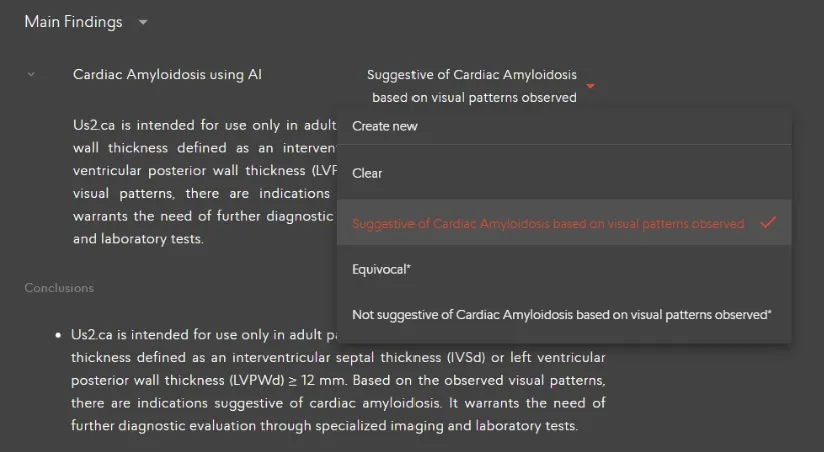

When echocardiogram studies are sent to the Us2.v2 device, the add-on software module will process the necessary views if available before the report is generated. Within the generated report, the modules will mention whether a patient study is “Suggestive of Cardiac Amyloidosis / Hypertrophic Cardiomyopathy / Valvular Regurgitation” when the model detects the disease with a sufficiently high level of confidence. This result is presented to the user under the Main Findings (Disease Guidelines) section illustrated below,

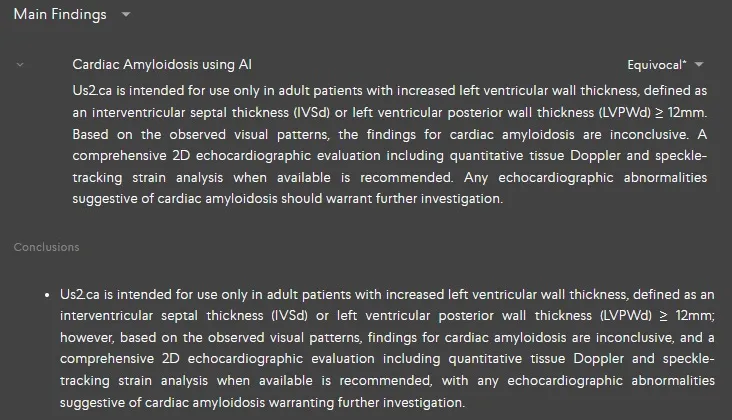

When the model is uncertain, the generated report will mention “Equivocal” for Cardiac Amyloidosis / Hypertrophic Cardiomyopathy / Valvular Regurgitation

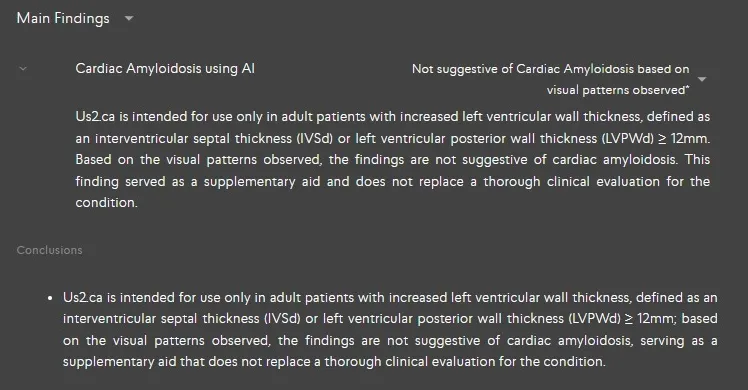

When the model does not observe any visual patterns to suggest [Condition], the generated report will mention “Not Suggestive of Cardiac Amyloidosis / Hypertrophic Cardiomyopathy / Valvular Regurgitation based on visual patterns observed” along with the emphasis that it does not mean the total replacement of a thorough clinical evaluation.

Us2.ai serves as a decision support tool to guide users in their clinical decision-making as they review and finalize the patient study for the conditions Cardiac Amyloidosis / Hypertrophic Cardiomyopathy / Valvular Regurgitation. Clinicians will see a potential finding flagged when opening a report, which they can clear the findings or change the decision then approve or reject.

5 Advanced Functions

5.1.6 Report Customization

5.1.7 Printing a report

Click the printer icon in the header of the Report in order to print it.

The report can be downloaded to your computer by selecting the ‘Download’ report button on the top right corner.

5.4 Editing patient information

Patient information such as name, gender and other characteristics at the top of the Report can be edited.

If there are more patient demographic details that need to be included in the report, expand the toggle to reveal the dropdown menu where you can add any other relevant details.

Once you are satisfied with the edits and additions, locate the “Save” button within the application. The “Save” button is usually found at the bottom of the screen. Click on the “Save” button to save all changes you have made to patient’s information and demographics.

If the gender of the patient has not been set, this will be indicated in the Notes field and female guideline values used to determine out of range values. Once the gender is set, this indication in the Notes field will be removed.

5.10.6 Stress Echo Protocol

Selecting the Stress Echo Protocol

To access the Stress Echo Protocol, navigate to the protocol drop-down list located at the top of your report page. From there, select 'Stress Echo Protocol' to enable the specific functionalities associated with this protocol

Conclusion for Stress Echo Result

Within the main findings section of your report, a dedicated conclusion for the stress echo result will be provided. This summary will help you interpret the findings from the stress echo procedure.

Baseline and Stress Echo Parameters

On the report page, both baseline and stress echo parameters will be accessible. This includes important metrics like RWMA (Regional Wall Motion Abnormalities) and LV systolic that are relevant to the stress echo assessment.

5.10.7 Contrast Echocardiography

LV Volume and LV Systolic functions as outlined in Table 2 are also available in cases where contrast echocardiography is employed. Echo parameters derived from contrast views are available on both the report and measurement pages.

Report page

6 Performance Summary

Us2.v2 is an expansion of the measurements of Us2.v1. Thus the performance of the Us2.v1 measurements are covered within the jurisdiction of Us2.v2.

The automated analysis generated by Us2.v2 will be compared head-to-head against manual analysis (of the same patient data and the same images) generated by trained echocardiography technicians or cardiologists, both in “gold standard” reference echo core labs and “real world” clinical settings. Test datasets are strictly segregated from algorithm training datasets, as they are from completely separate cohorts. Two statistical metrics, Root Mean Square Error (RMSE) and Intraclass Correlation Coefficient (ICC) are used to evaluate the performance of the Us2.v2 measurements against expert human measurements.

DICOM images from a wide variety of manufacturers were used to validate the software. DICOM metatag data available in these files contained the following manufacturer and models for the respective versions of our software:

DICOM images used for validation were captured with a variety of convex, linear and phased array probes showing an acquired frequency ranging between 1.4-10 MHz, and a Frames Per Second (FPS) range of 7- 209, with a mean of 31 from the following models, when information was available in the DICOM tags:

6.1 Us2.v1

6.2 Us2.v2

8 Manufacturer info

This software was manufactured in 2025 by Eko.ai Pte Ltd (dba Us2.ai).

Singapore

163 Tras Street, 09-04

Lian Huat building

Singapore 079024

9 Printed user guide

Users can request a printed version of the user guide anytime by sending a request to info@Us2.ai. The document is free and will be delivered within 7 calendar days.
